Description
| Bore type | Cylindrical |
Dimensions
| d | 120 mm | Bore diameter |
|---|---|---|
| D | 200 mm | Outside diameter |
| B | 80 mm | Width |
| d2 | ≈ 140 mm | Shoulder diameter of inner ring |
| D1 | ≈ 176 mm | Shoulder or recess diameter of outer ring |
| s1 | max. 18 mm | Permissible axial displacement |
| s2 | max. 11.2 mm | Permissible axial displacement |
| r1,2 | min. 2 mm | Chamfer dimension |
Abutment dimensions
| da | min. 131 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 160 mm | Diameter of shaft abutment |
| Da | min. 143 mm | Diameter of housing abutment |
| Da | max. 189 mm | Abutment diameter housing |
| ra | max. 2 mm | Radius of fillet |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 780 kN |
| Basic static load rating | C0 | 1 120 kN |
| Fatigue load limit | Pu | 114 kN |
| Limiting speed | 750 r/min | |
| Misalignment factor | k1 | 0.104 |
| Internal clearance factor | k2 | 0.103 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P5, tapered bore 1:12,
tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

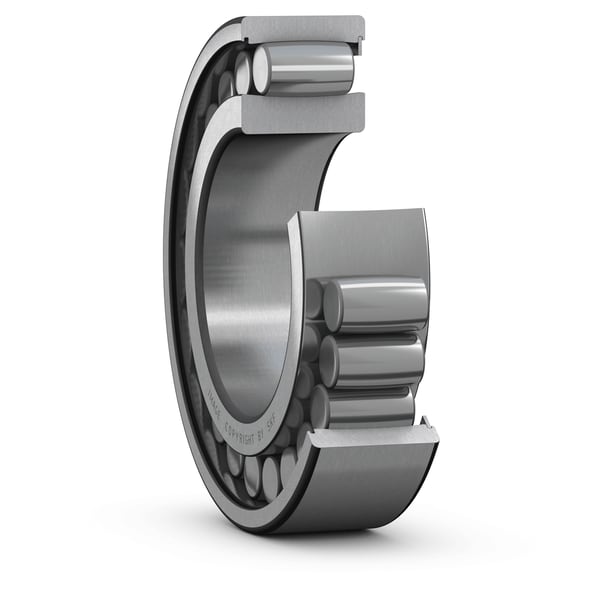

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.
- Accommodate misalignment and axial displacement within the bearing
- Very high radial load carrying capacity
- Provide frictionless axial movement
- Long bearing system life
