Description
Dimensions
| d | 4 mm | Bore diameter |
|---|---|---|
| D | 14 mm | Outside diameter |
| Dw | 2 mm | Diameter roller |
| Ea | min. 5 mm | Raceway diameter (min.) roller and cage thrust assembly |
| Eb | max. 13 mm | Raceway diameter (max.) roller and cage thrust assembly |
Calculation data
| Basic dynamic load rating | C | 4.15 kN |
|---|---|---|
| Basic static load rating | C0 | 8.3 kN |
| Fatigue load limit | Pu | 0.95 kN |
| Reference speed | 7 500 r/min | |
| Limiting speed | 15 000 r/min |
Associated products
| Thin universal washer | AS 0414 |
Tolerances and clearances
General bearing specifications
- Tolerances: table, values
Design considerations
- table
Bearing interfaces
- Seat tolerances for standard conditions

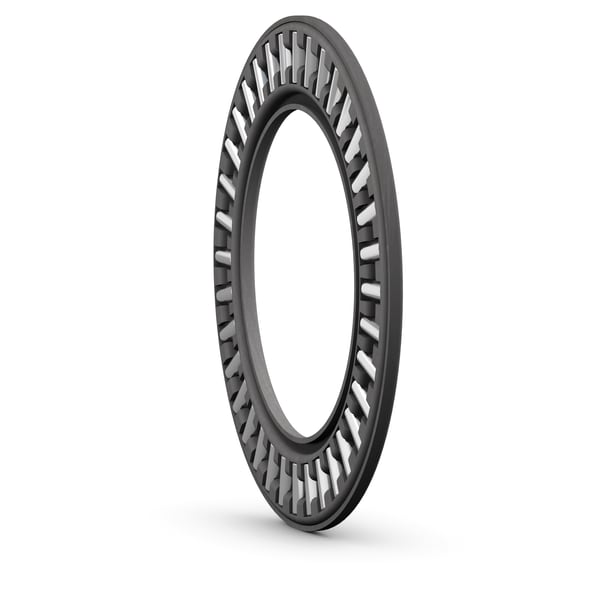

Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.
- High axial load carrying capacity
- High stiffness
- Long service life
- Require minimal axial space
- Can be combined with bearing washers
