Description
Dimensions
| d | 1 250 mm | Bore diameter |
|---|---|---|
| D | 1 500 mm | Outside diameter |
| B | 106 mm | Width |
| d1 | ≈ 1 347 mm | Shoulder diameter of inner ring |
| E | 1 430 mm | Raceway diameter of outer ring |
| r1,2 | min. 6 mm | Chamfer dimension |
| s | max. 15.4 mm | Permissible axial displacement |
Abutment dimensions
| da | min. 1 276 mm | Diameter of spacer sleeve |
|---|---|---|
| da | max. 1 422 mm | Diameter of spacer sleeve |
| Da | min. 1 438 mm | Diameter of housing abutment |
| Da | max. 1 473 mm | Diameter of housing abutment |
| ra | max. 5 mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 1 720 kN |
|---|---|---|
| Basic static load rating | C0 | 4 150 kN |
| Fatigue load limit | Pu | 240 kN |
| Reference speed | 670 r/min | |
| Minimum load factor | kr | 0 |
| Limiting value | e | 0.2 |
| Calculation factor | Y | 0.6 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal (), P6, Normal (inch)
- Radial internal clearance: cylindrical bore, tapered bore
- Axial internal clearance: NUP, NJ + HJ
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

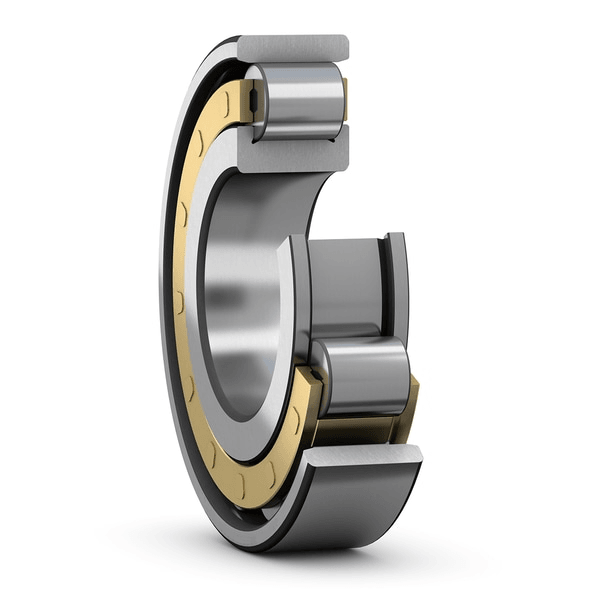

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The NR assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
- High to very high radial load carrying capacity
- Low friction
- Long service life
