Description
Dimensions
| d | 1 000 mm | Bore diameter |
|---|---|---|
| D | 1 220 mm | Outside diameter |
| B | 100 mm | Width |
| C | 100 mm | Width of outer ring |
| D1 | ≈ 1 143 mm | Shoulder diameter of outer ring |
| F | 1 053 mm | Raceway diameter of inner ring |
| r1,2 | min. 6 mm | Chamfer dimension |
| s | max. 26 mm | Permissible axial displacement |
Abutment dimensions
| da | min. 1 023 mm | Diameter of spacer sleeve |
|---|---|---|
| da | max. 1 040 mm | Diameter of spacer sleeve |
| db | min. 1 060 mm | Diameter of shaft abutment |
| Da | max. 1 197 mm | Diameter of housing abutment |
| ra | max. 5 mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 2 640 kN |
|---|---|---|
| Basic static load rating | C0 | 6 550 kN |
| Fatigue load limit | Pu | 400 kN |
| Reference speed | 400 r/min | |
| Limiting speed | 530 r/min | |
| Minimum load factor | kr | 0.05 |
| Limiting value | e | 0.2 |
| Calculation factor | Y | 0.6 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal (), P6, Normal (inch)
- Radial internal clearance: cylindrical bore, tapered bore
- Axial internal clearance: NUP, NJ + HJ
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

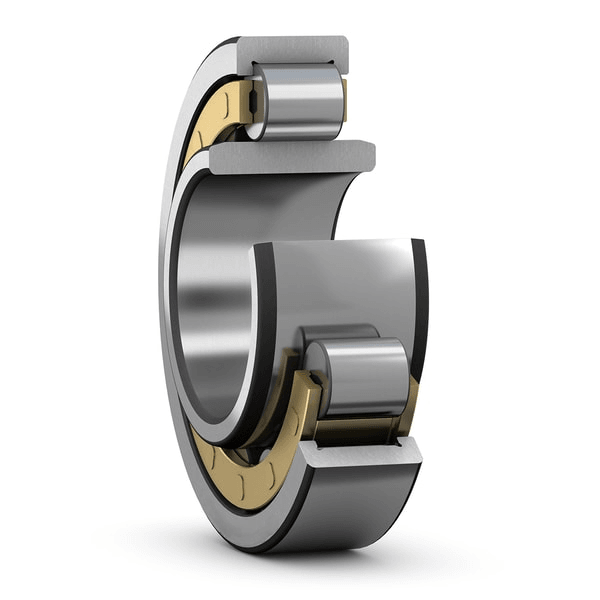

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NUB design bearings can accommodate axial displacement in both directions. The inner ring is extended on both sides, enabling larger axial displacements. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
- High radial load carrying capacity
- Low friction
- Long service life
- Accommodate axial displacement in both directions
- Separable design
