Description
Dimensions
| d | 380 mm | Bore diameter |
|---|---|---|
| D | 560 mm | Outside diameter |
| B | 135 mm | Width |
| D1 | ≈ 506 mm | Shoulder diameter of outer ring |
| F | 425 mm | Raceway diameter of inner ring |
| r1,2 | min. 5 mm | Chamfer dimension |
| s | max. 8.5 mm | Permissible axial displacement |
Abutment dimensions
| da | min. 398 mm | Diameter of spacer sleeve |
|---|---|---|
| da | max. 417 mm | Diameter of spacer sleeve |
| db | min. 430 mm | Diameter of shaft abutment |
| Da | max. 542 mm | Diameter of housing abutment |
| ra | max. 4 mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 2 380 kN |
|---|---|---|
| Basic static load rating | C0 | 4 750 kN |
| Fatigue load limit | Pu | 400 kN |
| Reference speed | 1 000 r/min | |
| Limiting speed | 1 800 r/min | |
| Minimum load factor | kr | 0.17 |
| Limiting value | e | 0.3 |
| Calculation factor | Y | 0.4 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal (), P6, Normal (inch)
- Radial internal clearance: cylindrical bore, tapered bore
- Axial internal clearance: NUP, NJ + HJ
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

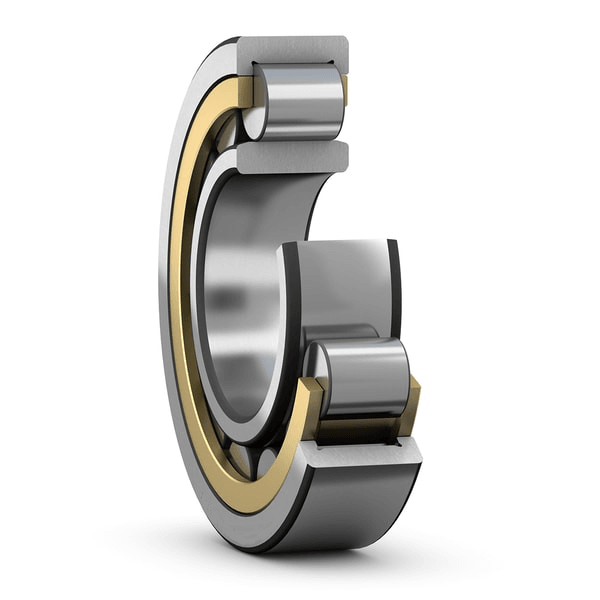

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
- High radial load carrying capacity
- Low friction
- Long service life
- Accommodate axial displacement in both directions
- Separable design
