Description
Dimensions
| d | 300 mm | Bore diameter |
|---|---|---|
| D | 420 mm | Outside diameter |
| Dw | 38 mm | Diameter roller |
| Ea | 329 mm | Raceway diameter (min.) roller and cage thrust assembly |
| Eb | 412 mm | Raceway diameter (max.) roller and cage thrust assembly |
Calculation data
| Basic dynamic load rating | C | 1 530 kN |
|---|---|---|
| Basic static load rating | C0 | 7 200 kN |
| Fatigue load limit | Pu | 540 kN |
| Reference speed | 320 r/min | |
| Limiting speed | 630 r/min | |
| Minimum axial load factor | A | 4.147 |
Associated products
| Shaft washer | WS 81260 |
| Housing washer | GS 81260 |
Tolerances and clearances
General bearing specifications
- Tolerances: table, table, values
Design considerations
- table
Bearing interfaces
- Seat tolerances for standard conditions

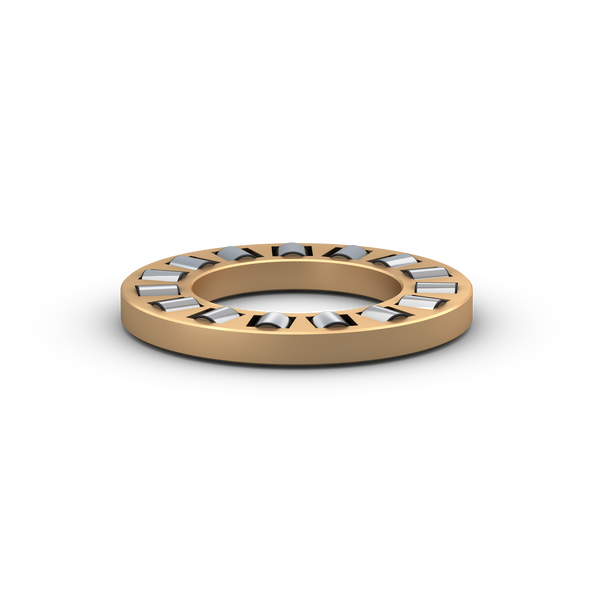

Cylindrical roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. Thrust assemblies can be used in applications where the adjacent components serve as raceways and enable bearing arrangements with a low axial section heights. Where the adjacent components cannot serve as raceways, they can be combined with one or two bearing washers to create complete bearings.
- High axial load carrying capacity
- High stiffness
- Long service life
- Require little axial space
- Can be combined with bearing washers
