EE 2 TN9
Products

EE 2 TN9

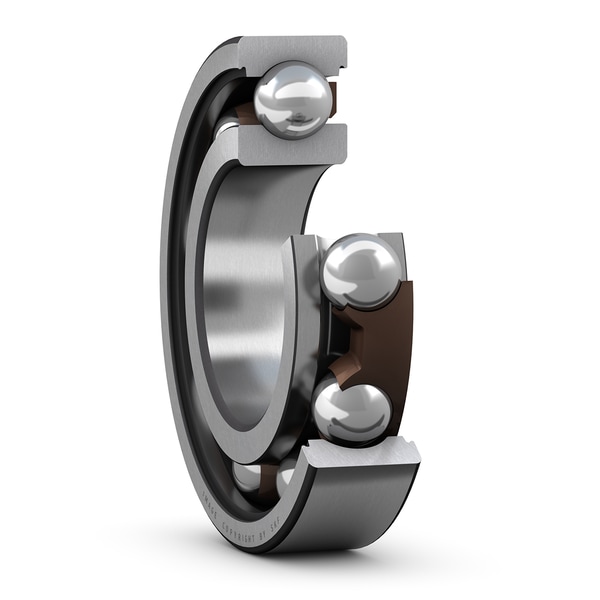

Product type: Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

sales@nr-bearing.com Whatsapp

Description

Overview

Dimensions

Bore diameter6.35 mm
Outside diameter19.05 mm
Width5.556 mm

Performance

Basic dynamic load rating2.81 kN
Basic static load rating1.08 kN
Reference speed70 000 r/min
Limiting speed50 000 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageNon-metallic
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.0069 kg
eClass code23-05-08-01
UNSPSC code31171504

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
