Description
Dimensions
| Fw | 130 mm | Diameter under rollers |
|---|---|---|
| D | 150 mm | Outside diameter |
| C | 30 mm | Width |
| r1,2 | min. 1 mm | Chamfer dimension outer ring |
Abutment dimensions
| Da | max. 145 mm | Diameter of housing abutment |
|---|---|---|
| ra | max. 1 mm | Fillet radius |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 114 kN |
| Basic static load rating | C0 | 255 kN |
| Fatigue load limit | Pu | 30 kN |
| Reference speed | 3 200 r/min | |
| Limiting speed | 3 600 r/min |
Associated seals
| 130x150x10 CRSA1 R | Radial shaft seal |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5, ISO - F6 (Fw)
- Radial internal clearance: table
Design considerations
- Housing tolerances: table
- Shaft tolerances: Operating clearance

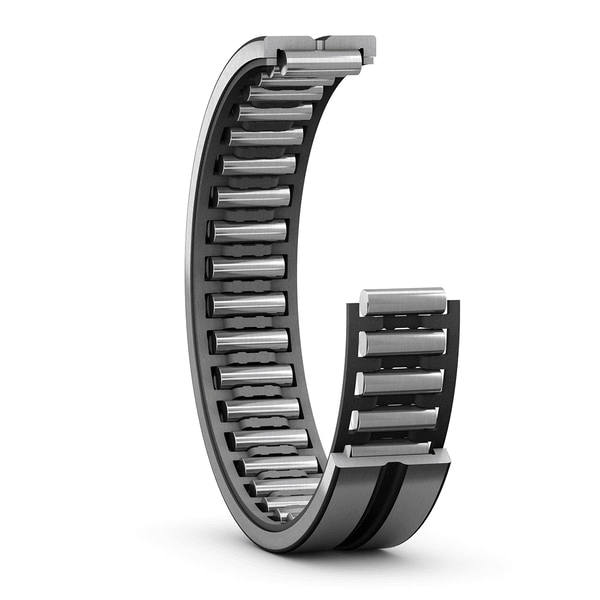

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
- High radial load carrying capacity
- High stiffness
- Low cross-sectional height
- Accommodate axial displacement in both directions
