Description
| Bore type | Cylindrical |
Dimensions
| Bore diameter | d | 950 mm |
|---|---|---|
| Deviation limits of mid-range bore diameter | -0.1 – 0.0 mm | |
| Outside diameter | D | 1 360 mm |
| Deviation limits of mid-range outside diameter | -0.16 – 0.0 mm | |
| Width | B | 412 mm |
| Deviation limits of ring width | -1.0 – 0.0 mm | |
| Shoulder diameter of inner ring | d2 | ≈ 1 077 mm |
| Shoulder/recess diameter of outer ring | D1 | ≈ 1 214 mm |
| Width of lubrication groove | b | 22.3 mm |
| Diameter of lubrication hole | K | 12 mm |
| Chamfer dimension | r1,2 | min. 7.5 mm |
| ISO tolerance class for dimensions | Normal |
Abutment dimensions
| Diameter of shaft abutment | da | min. 978 mm |
|---|---|---|
| Diameter of housing abutment | Da | max. 1 332 mm |
| Radius of fillet | ra | max. 6 mm |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 17 847 kN |
| Basic static load rating | C0 | 39 000 kN |
| Fatigue load limit | Pu | 2 240 kN |
| Reference speed | 170 r/min | |
| Limiting speed | 300 r/min | |
| Limiting value | e | 0.27 |
| Calculation factor | Y1 | 2.5 |
| Calculation factor | Y2 | 3.7 |
| Calculation factor | Y0 | 2.5 |
Tolerances of run-out
| Range of section height at inner ring of assembled bearing | tKia | 90 µm |
|---|---|---|
| Range of section height at outer ring of assembled bearing | tKea | 190 µm |
| ISO tolerance class for geoal tolerances | Normal |
Radial internal clearance
| Minimum initial clearance | 480 µm |
| Maximum initial clearance | 710 µm |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5,
tapered bore 1:12, tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

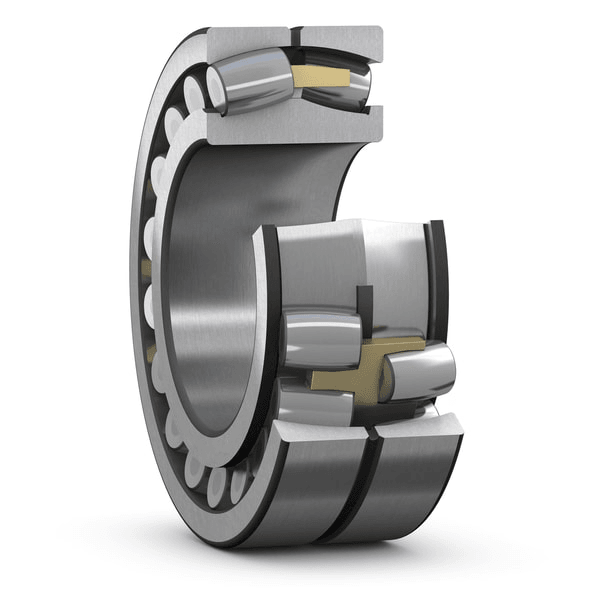

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
