Description
| Bore type | Cylindrical |
Dimensions
| Bore diameter | d | 95 mm |
|---|---|---|
| Outside diameter | D | 200 mm |
| Width | B | 77 mm |
| Shoulder diameter of inner ring | d2 | ≈ 114 mm |
| Shoulder/recess diameter of outer ring | D1 | ≈ 173 mm |
| Width of lubrication groove | b | 11.1 mm |
| Diameter of lubrication hole | K | 6 mm |
| Chamfer dimension | r1,2 | min. 3 mm |
| ISO tolerance class for dimensions | Normal |
Abutment dimensions
| Diameter of shaft abutment | da | min. 109 mm |
|---|---|---|
| Diameter of shaft abutment | da | max. 114 mm |
| Diameter of housing abutment | Da | max. 186 mm |
| Radius of fillet | ra | max. 2.5 mm |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 699 kN |
| Basic static load rating | C0 | 765 kN |
| Fatigue load limit | Pu | 73.5 kN |
| Limiting speed | 1 700 r/min | |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
Tolerances of run-out
| ISO tolerance class for geoal tolerances | P5 |
Radial internal clearance
| Minimum initial clearance | 60 µm |
| Maximum initial clearance | 100 µm |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5,
tapered bore 1:12, tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

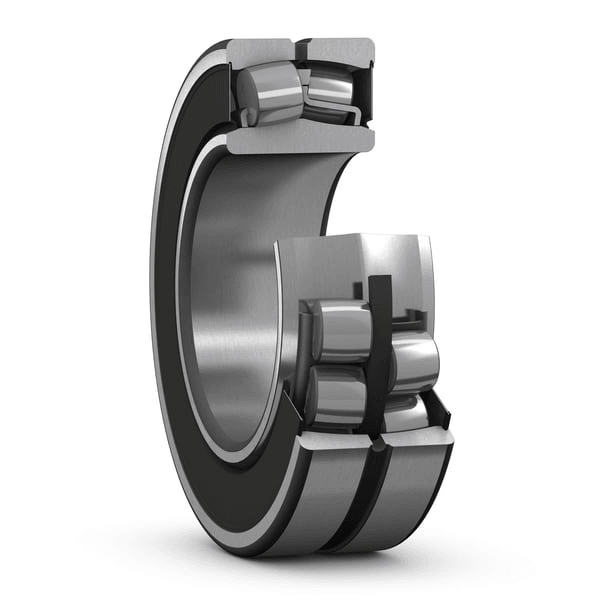

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.
- Accommodate misalignment
- High load carrying capacity
- Sealed for increased reliability, with relubrication features
- Low friction and long service life
- Increased wear resistance
