Description
| Design variant/feature | TQI |
| Bore type | Cylindrical |
Dimensions
| d | 384.175 mm | Bore diameter |
|---|---|---|
| D | 546.1 mm | Outside diameter |
| B | 437.96 mm | Total bearing width over inner rings |
| T | 384.175 mm | Total bearing width over outer rings |
| d1 | ≈ 455 mm | Abutment diameter shaft |
| D1 | ≈ 520 mm | Abutment diameter housing |
| r1,2 | min. 6.4 mm | Inner ring radius (chamfer) |
Calculation data
| Basic dynamic load rating | C | 6 440 kN |
|---|---|---|
| Basic static load rating | C0 | 16 600 kN |
| Fatigue load limit | Pu | 1 290 kN |
| Comparative radial load rating | CF | 1 730 kN |
| Comparative axial load rating | CFa | 278 kN |
| Thrust factor | K | 1.76 |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
Tolerances and clearances
General bearing specifications
- Tolerances: bearings (Normal and CL7C), inch bearings
- Internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

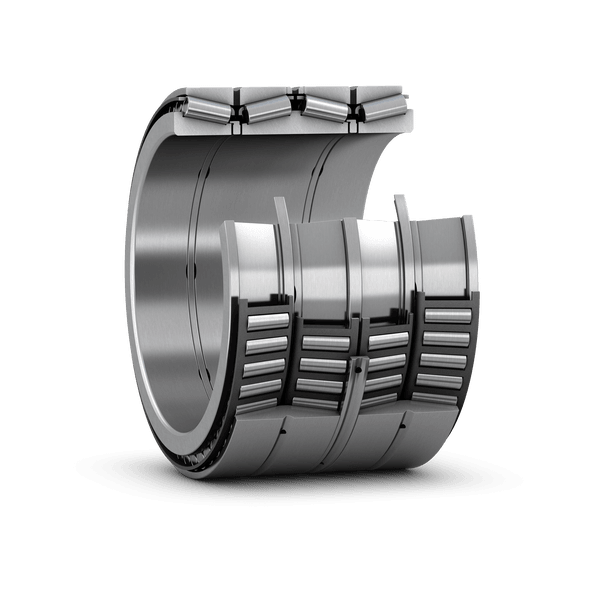

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. NR manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
- Very high radial load carrying capacity
- Accommodate axial loads in both directions
- Axial space-saving solution for roll necks
- Low friction
- Long service life
