Description
| Design variant/feature | TDO.1/D |
Dimensions
| d | 1 160 mm | Bore diameter |
|---|---|---|
| D | 1 540 mm | Outside diameter |
| T | 400 mm | Total width |
| C | 290 mm | Width of outer ring |
| r1,2 | min. 12 mm | Chamfer dimension of inner ring |
| r3,4 | min. 4 mm | Chamfer dimension of outer ring |
| a | 585 mm | Distance between pressure points |
Calculation data
| Basic dynamic load rating | C | 14 200 kN |
|---|---|---|
| Basic static load rating | C0 | 38 000 kN |
| Fatigue load limit | Pu | 2 160 kN |
| Limiting value | e | 0.44 |
| Calculation factor | Y1 | 1.5 |
| Calculation factor | Y2 | 2.3 |
| Calculation factor | Y0 | 1.4 |
| Comparative radial load rating | CF | 3 550 kN |
| Comparative axial load rating | CFa | 1 527 kN |
| Thrust factor | K | 1.31 |
Tolerances and clearances
General bearing specifications
- Tolerances:
bearings: Normal and CL7C, P5
inch bearings: Normal and CL - Internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

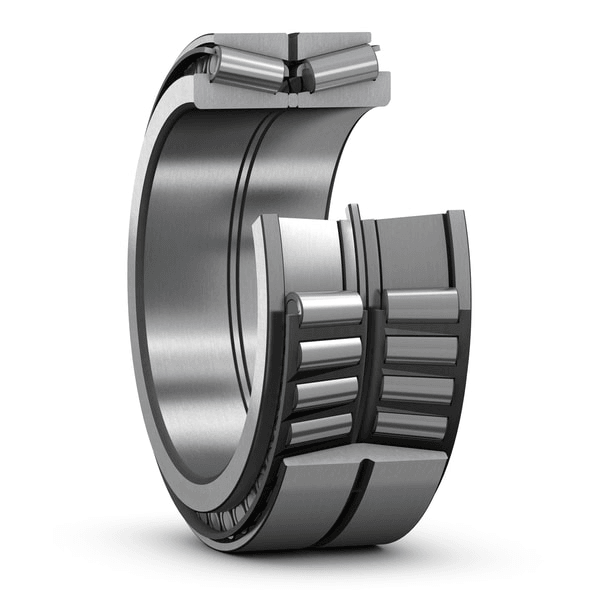

NR double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments. Design variants include features such as a helical groove in the bore or lubrication grooves in the side faces of the bearing rings.
- High radial load carrying capacity
- Accommodate axial loads in both directions
- Relatively high stiffness
- Accommodate tilting moments
- Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
- Ready to mount
