Description
Dimensions
| d | 140 mm | Bore diameter |
|---|---|---|
| D | 146 mm | Outside diameter |
| H | 3 mm | Radial cross section |
| B | 2.489 mm | Width |
| d1 | ≈ 142.2 mm | Shoulder diameter inner ring |
| D1 | ≈ 143.8 mm | Shoulder diameter outer ring/ inner diameter housing washer |
| 1.588 mm | Ball diameter | |
| 0.25 mm | Maximum radius of shaft or housing fillet |
Calculation data
| Dynamic load rating, Kaydon, radial direction | CK | 1 470 N |
|---|---|---|
| Basic static load rating, radial direction | C0 | 2 818 N |
| Maximum loading limit, axial direction | Fa | 623 N |
| Maximum loading limit, moment | FM | 17.8 N·m |
Tolerances and clearances
General bearing specifications
- Tolerances, radial clearance and recommended fits: Class 1
- Materials

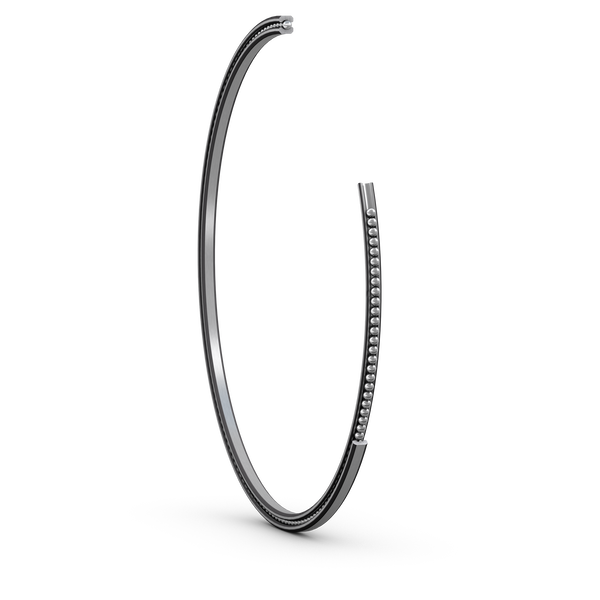

Four-point contact ball bearings can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are not recommended for applications having continuous rotation.
- Accommodate radial, axial and moment loads simultaneously
- Require considerably less axial space than two angular contact ball bearings
- Extremely thin cross section
- Lightweight
- Chemical and corrosion resistance
- Low friction
- High stiffness
- High running accuracy
