Description
Dimensions
| d | 60 mm | Bore diameter |
|---|---|---|
| D | 66 mm | Outside diameter |
| H | 3 mm | Radial cross section |
| B | 2.489 mm | Width |
| d1 | ≈ 62.2 mm | Shoulder diameter inner ring |
| D1 | ≈ 63.8 mm | Shoulder diameter outer ring/ inner diameter housing washer |
| 1.588 mm | Ball diameter | |
| 0.25 mm | Maximum radius of shaft or housing fillet |
Calculation data
| Dynamic load rating, Kaydon, radial direction | CK | 552 N |
|---|---|---|
| Basic static load rating, radial direction | C0 | 649 N |
| Maximum loading limit, axial direction | Fa | 1 112 N |
Tolerances and clearances
General bearing specifications
- Tolerances, radial clearance and recommended fits: Class 1
- Materials

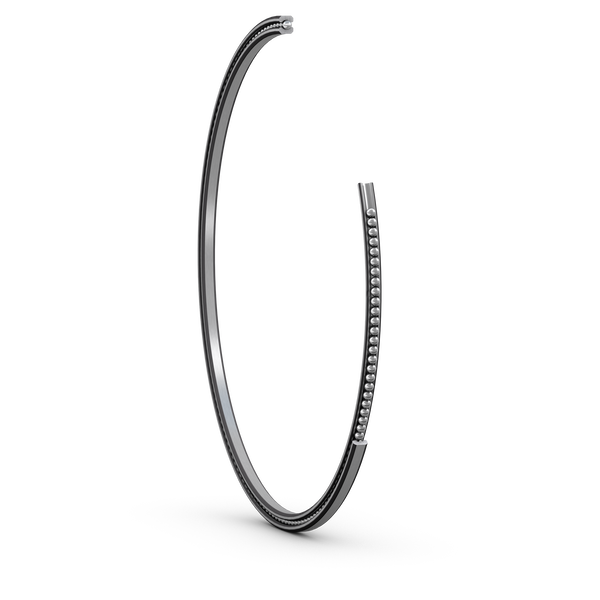

These angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are not recommended for applications having continuous rotation.
- Accommodate radial loads and axial loads in one direction
- Extremely thin cross section
- Lightweight
- Chemical and corrosion resistance
- Low friction
- High stiffness
- High running accuracy
